Blood Bank Refrigerator
CFC and HCFC Free
Stably and safely controls the temperature of blood products in medical settings.
Japanese Medical Equipment Manufacturing and Sales Authorization No. 21900BZX000080A01
・Contact Daido for detailed specifications.
Features
[1] The temperature of red blood cell concentrates can be controlled to within the 4°C±2°C temperature distribution range ideal for storage in Japanese medical equipment-approved blood bank refrigerator.
[2] Can store a maximum of 480 blood bags (280mL size) for DRS-1080 when using the optional cart.
[3] Extensive line-up available, from our 520ℓ single door type to our 1080ℓ large capacity types.
[4] Contact Daido for temperature validation and other information.

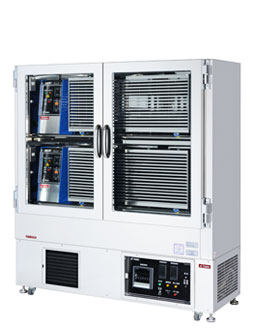

DRS-500
Product Specifications
| Model | DRS-500 | DRS-1080 |
|---|---|---|
| External dimensions | W754xD1100xH1848 | W1350xD1100xH1848 |
| Capacity | 520ℓ/240 Blood bags(280mL) | 1080 ℓ/480 blood bags(280mL) |
| Temperature | 4°C | |
| Cooling method | Refrigerant gas temperature control, Horizontal laminar blow | |
| Refrigerant | HFC | |
Plasma Freezer
Rapid plasma freezer for FFP (fresh frozen plasma)
CFC and HCFC Free
Rapid FFP freezing is determined by freezing wattage.
Delivers power head-and-shoulders above the competition.
Japanese Medical Equipment Manufacturing and Sales Authorization No. 21900BZX00011000
・Contact Daido for detailed specifications.
Features
[1] A medical equipment-approved rapid blood freezer.
[2] Can create a maximum of 75 bags (400mL) of frozen plasma quickly (DPF-5500A).
[3] Uses Daido’s unique cooling system to provide uniform, powerful cooling for a shorter cooling time.
[4] Comes with an external alarm terminal for the quick connection of centralized control systems.
[5] Simple, easy-to-see control panel.
[6] Contact Daido for temperature validation and other information.

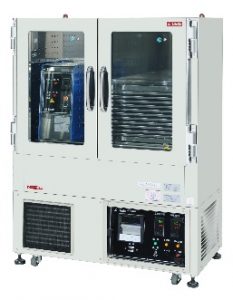

DPF-5500A
Product Specifications
| Model | DPF-5500A | DPF-3000A |
|---|---|---|
| External dimensions | W1350ｘD1180ｘH1970 | W1200ｘD1045ｘH1880 |
| Capacity | 780ℓ 75 plasma bags(400mL) |
220ℓ 75 plasma bags(250mL) |
| Temperature | -40°C | |
| Cooling method | Contact type | Blast type |
| Refrigerant | HFC | |
Platelet Incubator : Chromatochamber
Horizontal Agitator : Horshe
CFC and HCFC Free
Stably controls both temperature and agitation of platelet concentrate (PC) in the +20 to 24°C range.
A reliable platelet agitator designed for PC agitation. Fits perfectly inside our special platelet incubator to create the optimal keeping temperature.
Japanese Medical Equipment Manufacturing and Sales Authorization No. 21900BZX00009000
Japanese Medical Equipment Manufacturing and Sales Authorization No. 21900BZX00010000
・Contact Daido for detailed specifications.
Features
【Platelet incubator ： Chromatochamber】
[1] The temperature of platelet concentrates can be controlled to within the 22°C±2°C temperature distribution range ideal for storage in our platelet incubator.
[2] There are no columns in the center of the chamber, making it extremely easy to put in or take out concentrates.
[3] Contact Daido for temperature validation and other information.
【Platelet Agitator ：Horshe】
[1] Simple construction designed for safety and minimal failures.
[2] Comes with a large storage capacity with no wasted space.
[3] Agitator speed can be confirmed on the digital display.

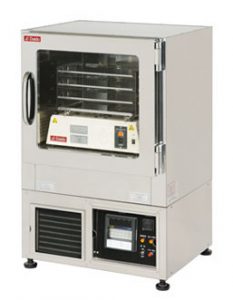

DRL-2BP&DHB-200
DRL-3BP&DHB-30
DRL-4BP&DHB-32C
Product Specifications
Platelet incubator chromatographic chamber
| Model | DRL-2BP DHB-200 |
DRL-3BP DHB-30(DHB-60) |
DRL-4BP DHB-32C |
|---|---|---|---|
| Dimensions | W1600xD640xH1770 | W1050xD575xH1410 | W700xD640xH1085 |
| Capacity | 5bags x 16 shelves x 2 units =160 platelet bags |
3bags x 10(20) shelves =30(60) platelet bags |
2 bags x 4 shelves =8 platelet bags |
| Temperature | 22°C | ||
| Cooling method | Refrigerant gas temperature control, Horizontal laminar blow | ||
| Refrigerant | HFC | ||
| Stroke | 48mm | ||
| Slide Frequency | 0~80rpm | ||
